Automatic Servo Feeder

Automatic Servo Feeder Specification

Belt Type
PLC Based

Lifting Speed
30 mm/m

Motor Type
Servo

Handle Type
Pneumatic

Forklift
No

Features
PLC Based

Rotation Type
Roller

Rack Capacity
5 Kilogram(Kg)

Equipment Type
Servo Feeder

Control System
PLC Based

Usage
Coil Sheet Feeder

Condition
New

Size
20 X 20 X 60 inch

Lifting Capacity
2 Metric Ton

Height
60 Inch (in)

Max. Lifting Load
2 Metric Ton

Product Type
Servo Feeder

Max. Lifting Height
60 Inch (in)

Weight
150 Kilograms (kg)

Color
Blue

Power Source
Electric

Length
20 Inch (in)

Power Consumption
2 Kilowatt (kW)

Width
20 Inch (in)

Voltage
420

Length of Belt
4 Inch (in)

Feature
Servo Feeder

Warranty
3 Year

Automatic Servo Feeder Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
30 Pieces Per Month

Delivery Time
45 Days

Packaging Details
Starch Roll Wrapping

Main Export Market(s)
Asia

Main Domestic Market
All India

About Automatic Servo Feeder

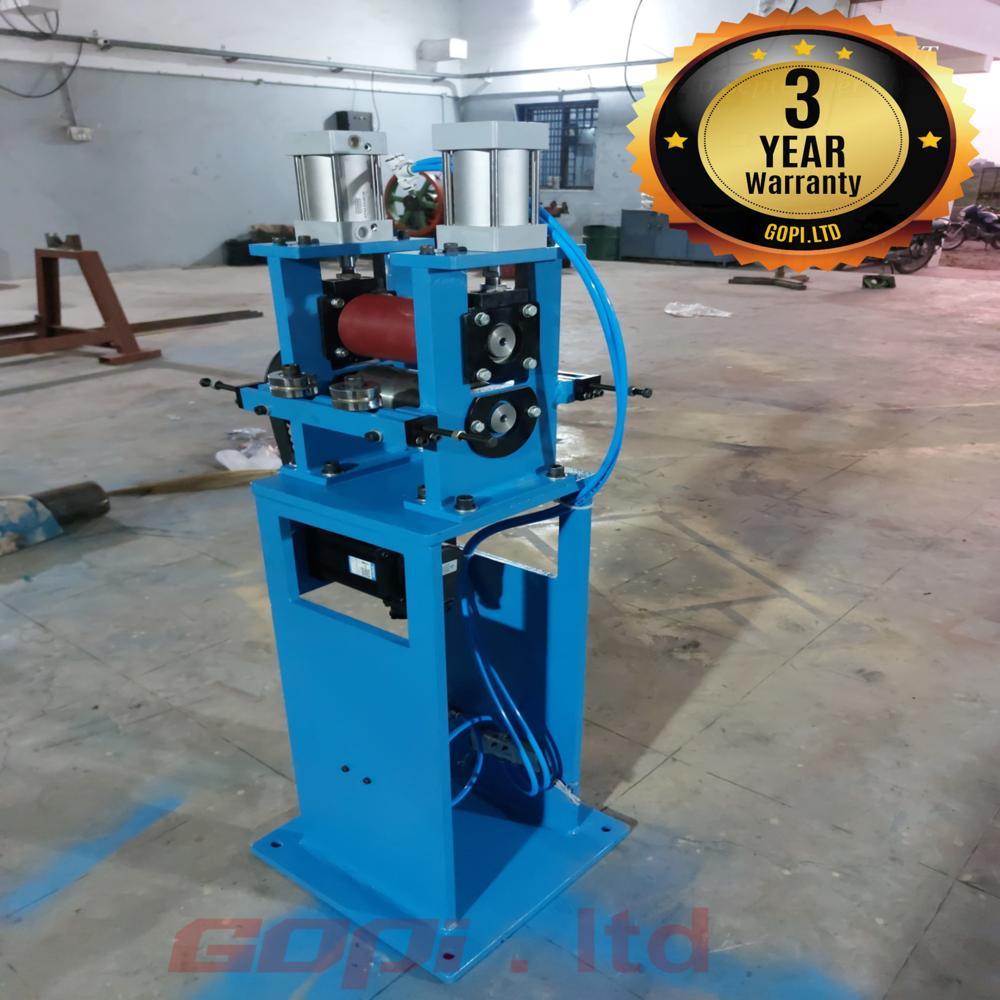

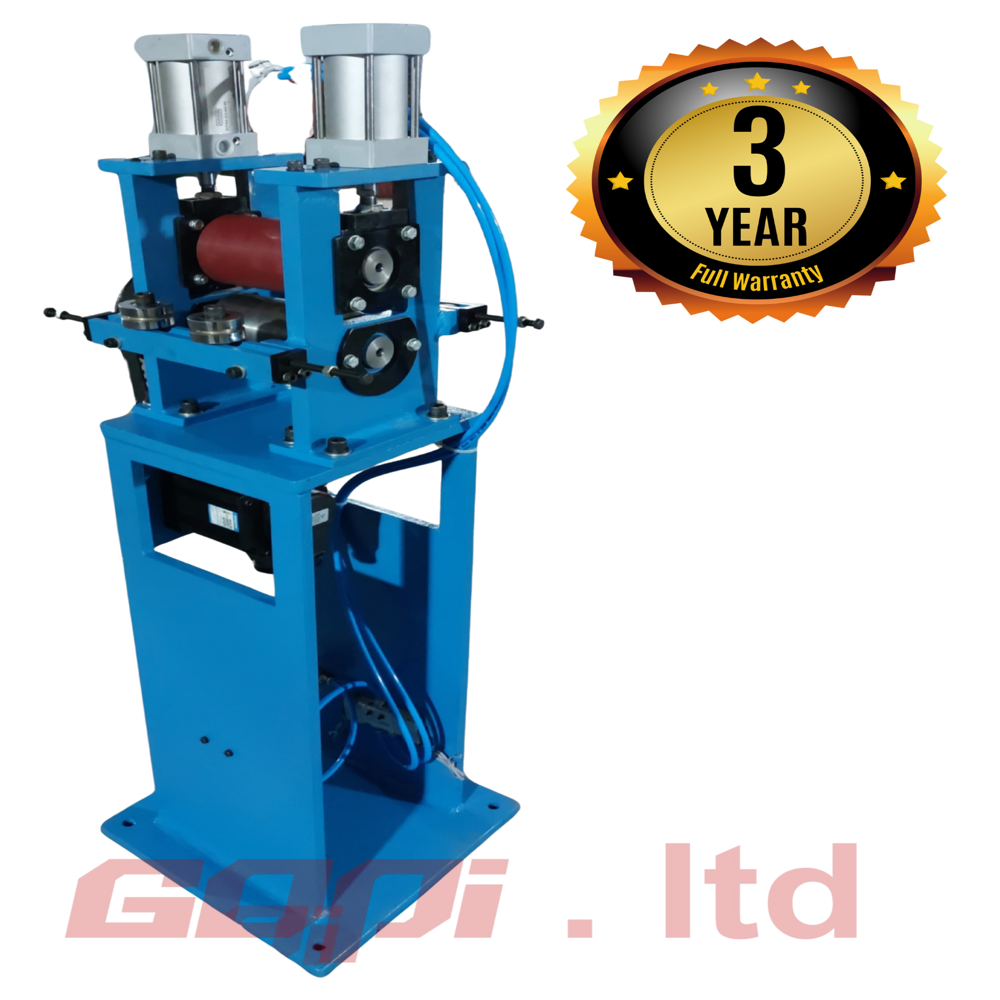

Servo Feeder with PU Coated Roller & Pneumatic Cylinder (3-Year Warranty)

Product Overview:
Our high-performance Servo Feeder with PU Coated Rollers is engineered for precise and reliable strip feeding in metal stamping, punching, and press automation lines. Integrated with a robust pneumatic cylinder mechanism, this feeder ensures smooth material clamping and release, enhancing overall production efficiency. Ideal for feeding materials like steel, copper, aluminum, and brass coils.

Key Features:

Advanced Servo Drive System
Equipped with a high-torque, precision servo motor and drive for accurate feed length control and synchronized press feeding.
PU Coated Rollers
High-durability Polyurethane (PU) coated rollers ensure scratch-free and slip-resistant feedingideal for surface-sensitive materials.
Pneumatic Cylinder Mechanism
Pneumatic top roller lift ensures smooth coil loading/unloading, secure clamping, and consistent feeding pressure.
Touch Screen HMI Control
Easy-to-use interface allows operators to quickly set feed length, speed, and job memory for multiple product setups.
Heavy-Duty Build
Rigid steel frame minimizes vibration and ensures long-term stability even in high-speed press lines.
Three-Year Warranty
Backed by a 3-year comprehensive warranty for servo motor, controller, and mechanical parts (excluding consumables), ensuring complete peace of mind.

Technical Specifications:

Parameter	Details
Feeding Width	Up to 500 mm (customizable)
Material Thickness	0.2 mm 3.2 mm
Feed Length	0.1 mm 9999.9 mm (programmable)
Feed Accuracy	0.1 mm (material-dependent)
Feeding Speed	Up to 30 m/min
Drive Motor	AC Servo Motor
Roller Coating	PU Coated Hardened Rollers
Cylinder Type	Pneumatic (double-acting)
Control System	PLC with HMI (touchscreen)
Air Supply Required	56 bar
Power Supply	3 Phase, 415V, 50 Hz

Precision Coil Sheet Feeding

Engineered with a servo motor and PLC-based controls, the Automatic Servo Feeder delivers exceptional accuracy for coil sheet processing. The mechanism ensures precise placement and consistent feeding, reducing material wastage and maintaining product uniformity across production lines. Its roller rotation type enhances smooth material movement, making it ideal for complex feeding requirements.

Sturdy Design and High Capacity

Constructed from durable materials, this feeder supports a lifting capacity of up to 2 metric tons and a rack capacity of 5 kg, accommodating various sheet sizes within a robust frame. The feeder measures 20 x 20 x 60 inches and weighs 150 kg, making it stable during operation, while its 60-inch max lifting height and 4-inch belt enable efficient throughput for demanding manufacturing environments.

User-friendly and Low-maintenance

With pneumatic handle operation and PLC-based belt and control systems, the Automatic Servo Feeder offers streamlined usability and minimal maintenance efforts. The straightforward PLC interface allows for seamless parameter setting and operational monitoring, catering to dealers, exporters, and service providers seeking reliable and easy-to-integrate sheet feeding solutions.

FAQs of Automatic Servo Feeder:

Q: How does the Automatic Servo Feeder operate within industrial settings?

A: The feeder uses a servo motor for precise feeding and a PLC-based control system to manage parameters and automate operations. It relies on roller rotation and a pneumatic handle for reliable, accurate sheet handling, making it suitable for high-volume coil sheet processing environments.

Q: What specific benefit does the PLC-based control provide?

A: PLC-based controls enhance operational precision, allow easy parameter adjustments, and ensure consistent performance. This system reduces manual intervention, improves production efficiency, and simplifies troubleshooting for manufacturers and operators.

Q: When should an Automatic Servo Feeder be utilized in production processes?

A: This equipment is ideal when high accuracy, reliability, and heavy lifting are required, such as in coil sheet feeding for metalworking, fabrication, or press operations where consistent material feeding boosts productivity and reduces errors.

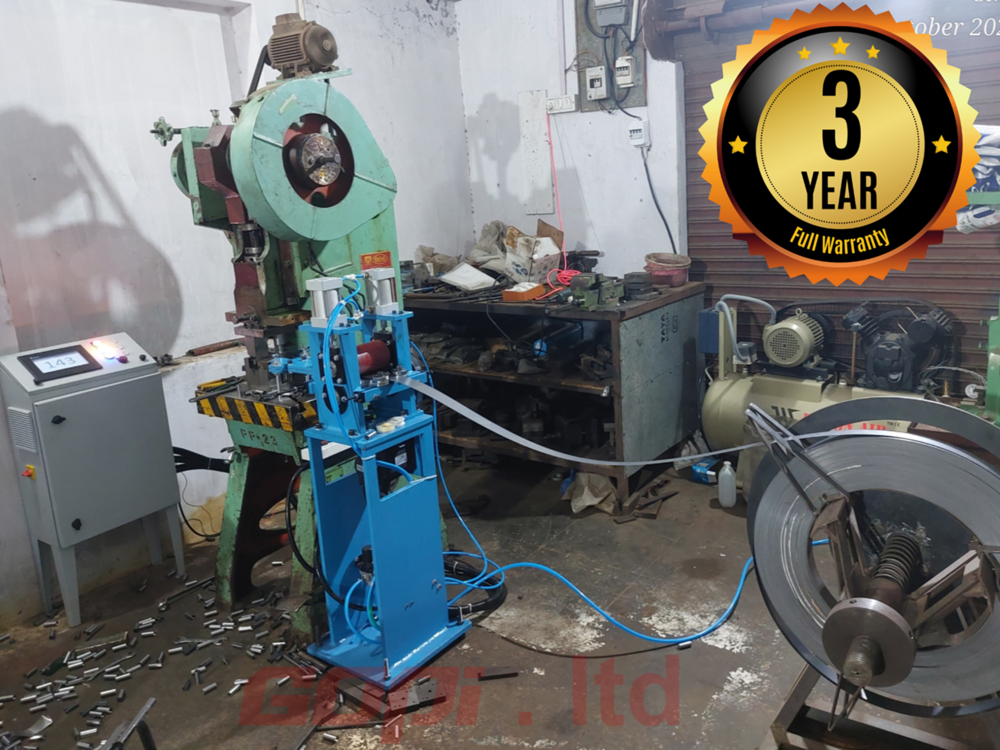

Q: Where can the Automatic Servo Feeder be integrated within a manufacturing line?

A: The feeder is designed for integration at the start of coil handling systems or before presses, shears, or forming machines. Its compact 20 x 20 x 60-inch size makes it adaptable to various plant layouts without occupying excessive floor space.

Q: What is the process for setting up and using the Servo Feeder?

A: Setting up involves positioning the feeder, connecting it to a 420V power source, configuring the PLC controls, and loading the coil sheets onto the rack. Operators can then use the pneumatic handle and control panel for precise, automated feeding.

Q: How does the feeder maximize productivity and safety?

A: By automating coil feeding, the servo feeder minimizes manual material handling, speeding up the process and reducing the risk of injury. Its PLC-based systems and stable structure ensure smooth, safe, and efficient operations during extended manufacturing cycles.

Q: What warranty and after-sales support are included with this feeder?

A: The Automatic Servo Feeder comes with a 3-year warranty, covering manufacturing defects and major components. Indian dealers, suppliers, and service providers offer prompt support, ensuring equipment reliability and customer satisfaction.
