Servo Feeder

Servo Feeder Specification

Rotation Type
Roller

Wheel Type
Rubber

Lifting Speed
30 m/m

Features
PLC Based

Rack Capacity
60 Cubic Foot (ft3)

Handle Type
Automatic

Motor Type
Servo

Forklift
no

Control System
PLC

Usage
Sheet Feeder

Condition
New

Size
5 Feet

Height
60 Inch (in)

Lifting Capacity
2 Long Ton

Product Type
Servo Feeder

Weight
150 Kilograms (kg)

Max. Lifting Height
60 Inch (in)

Color
Blue

Power Source
Electric

Length
60 Inch (in)

Width
20 Inch (in)

Power Consumption
2 Kilowatt (kW)

Voltage
420 Volt (v)

Length of Belt
60 Inch (in)

Feature
PLC Based

Warranty
3 Year

Servo Feeder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
30 Pieces Per Month

Delivery Time
45 Days

Sample Available
No

Packaging Details
Standerd

Main Domestic Market
All India

About Servo Feeder

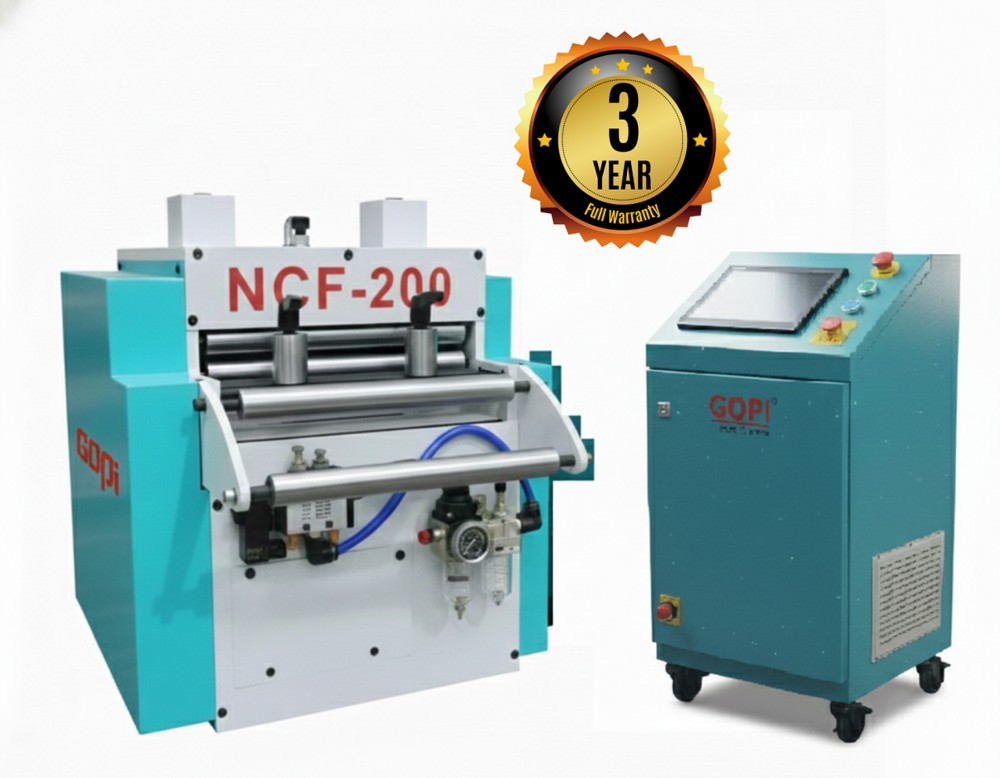

Servo Feeder with PU Coated Roller & Pneumatic Cylinder (3-Year Warranty)

Product Overview:

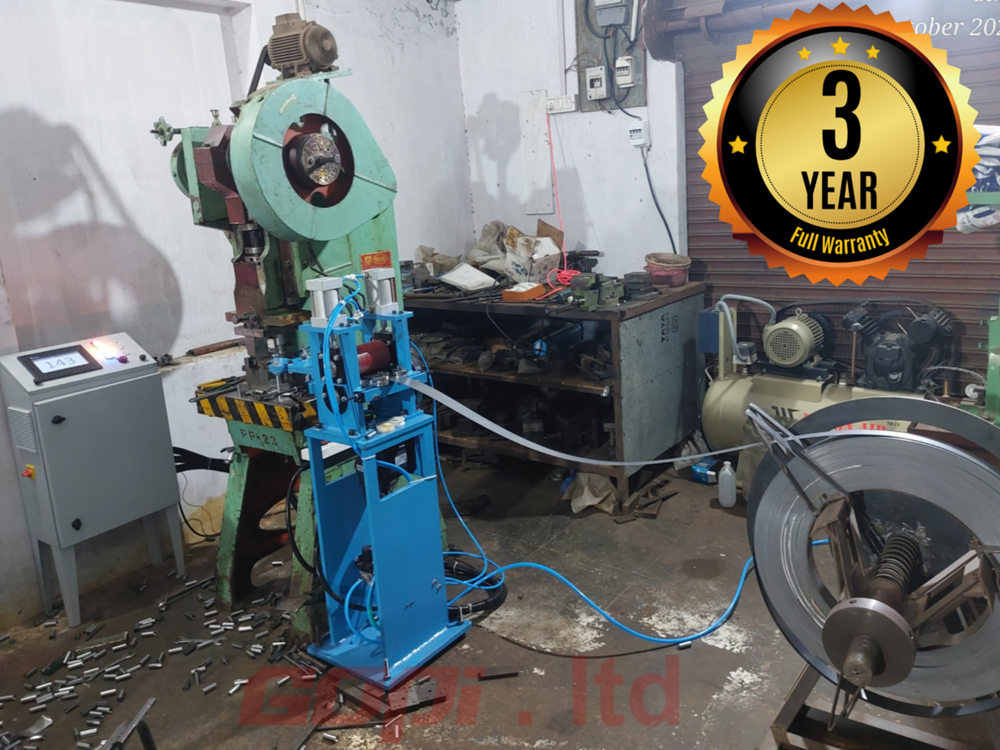

Our high-performance Servo Feeder with PU Coated Rollers is engineered for precise and reliable strip feeding in metal stamping, punching, and press automation lines. Integrated with a robust pneumatic cylinder mechanism, this feeder ensures smooth material clamping and release, enhancing overall production efficiency. Ideal for feeding materials like steel, copper, aluminum, and brass coils.

Key Features:

Advanced Servo Drive System
Equipped with a high-torque, precision servo motor and drive for accurate feed length control and synchronized press feeding.
PU Coated Rollers
High-durability Polyurethane (PU) coated rollers ensure scratch-free and slip-resistant feedingideal for surface-sensitive materials.
Pneumatic Cylinder Mechanism
Pneumatic top roller lift ensures smooth coil loading/unloading, secure clamping, and consistent feeding pressure.
Touch Screen HMI Control
Easy-to-use interface allows operators to quickly set feed length, speed, and job memory for multiple product setups.
Heavy-Duty Build
Rigid steel frame minimizes vibration and ensures long-term stability even in high-speed press lines.
Three-Year Warranty
Backed by a 3-year comprehensive warranty for servo motor, controller, and mechanical parts (excluding consumables), ensuring complete peace of mind.

Technical Specifications:

Parameter	Details
Feeding Width	Up to 500 mm (customizable)
Material Thickness	0.2 mm 3.2 mm
Feed Length	0.1 mm 9999.9 mm (programmable)
Feed Accuracy	0.1 mm (material-dependent)
Feeding Speed	Up to 30 m/min
Drive Motor	AC Servo Motor
Roller Coating	PU Coated Hardened Rollers
Cylinder Type	Pneumatic (double-acting)
Control System	PLC with HMI (touchscreen)
Air Supply Required	56 bar
Power Supply	3 Phase, 415V, 50 Hz

Advanced PLC-Based Automation

Equipped with a state-of-the-art PLC control system, this servo feeder delivers accurate automation for sheet metal handling. The user-friendly interface streamlines operation and reduces error rates, making it suitable for both small and large-scale production environments. The automated functionality enhances overall productivity and reliability.

Sturdy, High-Capacity Construction

Built to handle heavy-duty loads, the servo feeder lifts up to 2 long tons with a maximum lifting height of 60 inches. Its robust frame, 60-inch rack capacity, and 150 kg weight provide outstanding stability throughout continuous operation. The rubber wheel and roller rotation system further promote smooth movement and material flow.

FAQs of Servo Feeder:

Q: How does the PLC-based control system enhance the operation of the Servo Feeder?

A: The PLC-based control system ensures precision and automation during sheet feeding, minimizing manual intervention and boosting efficiency. It enables easy programming for various operational modes, reducing errors and maintenance.

Q: What is the process for using the Servo Feeder for sheet feeding tasks?

A: Simply set the required parameters on the PLC control panel, place the sheets on the feeder, and activate the automatic handle. The feeder will lift and transport the sheets using the servo-driven roller system at a speed of 30 m/m.

Q: When is it recommended to use this Servo Feeder?

A: This servo feeder is ideal for continuous industrial use, especially in manufacturing settings that require reliable, high-capacity sheet handling and precise automation. It is particularly suited to metal sheet feeding applications.

Q: Where can the Servo Feeder be installed and used most effectively?

A: The feeder is designed for indoor industrial environments, such as factories and production workshops in India, where sheet feeding efficiency and automation are critical requirements.

Q: What are the main benefits of using a Servo Feeder with a servo motor and rubber wheels?

A: The servo motor provides smooth and controlled motion, while rubber wheels ensure quiet operation and protect the facility floor. This combination enhances durability, safety, and overall operational performance.
