NC Servo Feeder

NC Servo Feeder Specification

Forklift
No

Lifting Speed
30 mm/m

Control System
PLC Based

Motor Type
Servo

Handle Type
Pneumatic

Rack Capacity
2 Kilogram(Kg)

Belt Type
MS

Features
PLC Based

Rotation Type
Roller

Equipment Type
Servo Feeder

Usage
Sheet Feeder

Condition
New

Size
20 X 20 X 6 0Inch

Lifting Capacity
2 Metric Ton

Height
60 Inch (in)

Product Type
NS Servo Feeder Automatic Servo Feeder Roller Feeder

Max. Lifting Load
2 Metric Ton

Max. Lifting Height
60 Inch (in)

Weight
150 Kilograms (kg)

Power Source
Electric

Color
Blue

Length
20 Inch (in)

Power Consumption
2 Kilowatt (kW)

Width
20 Inch (in)

Voltage
420 Volt (v)

Length of Belt
150 Nanometer (nm)

Feature
PLC Based

Warranty
3 Year

NC Servo Feeder Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
30 Pieces Per Month

Delivery Time
45 Days

Sample Available
No

Packaging Details
Starch roll Wrapping

Main Domestic Market
All India

About NC Servo Feeder

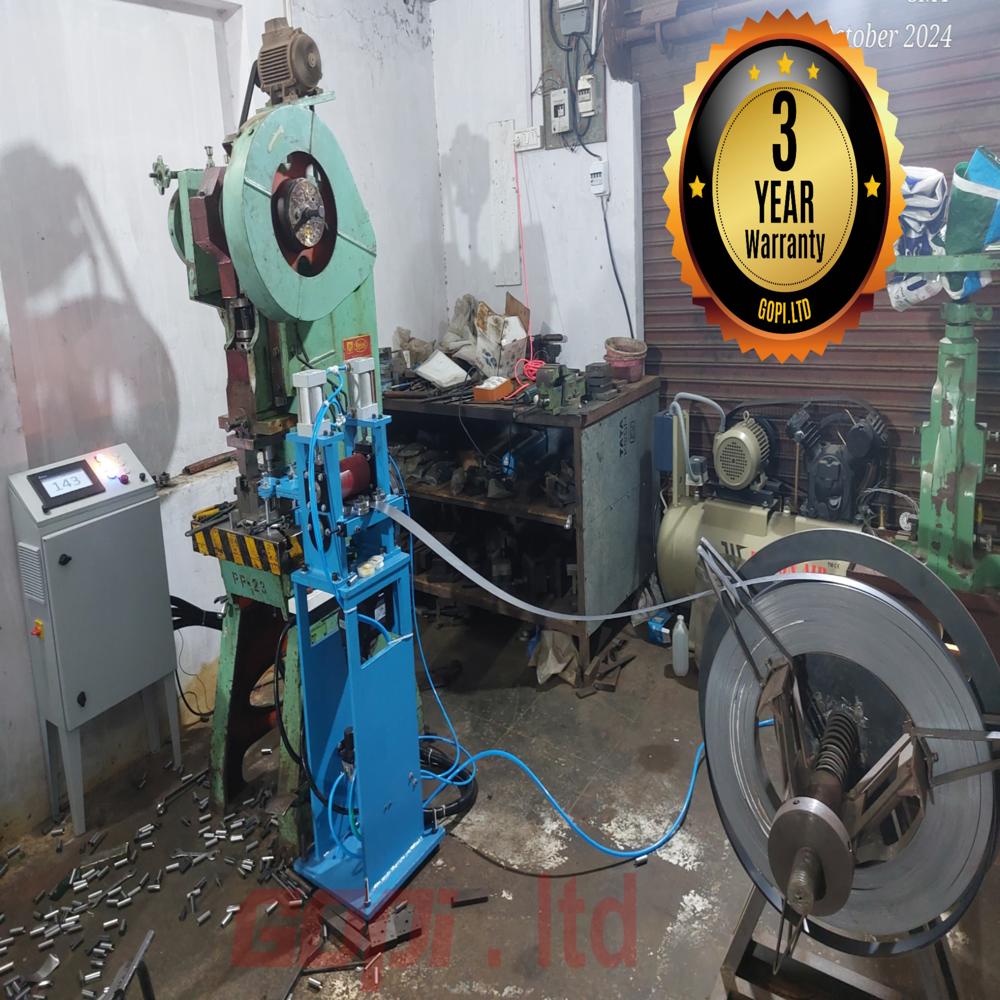

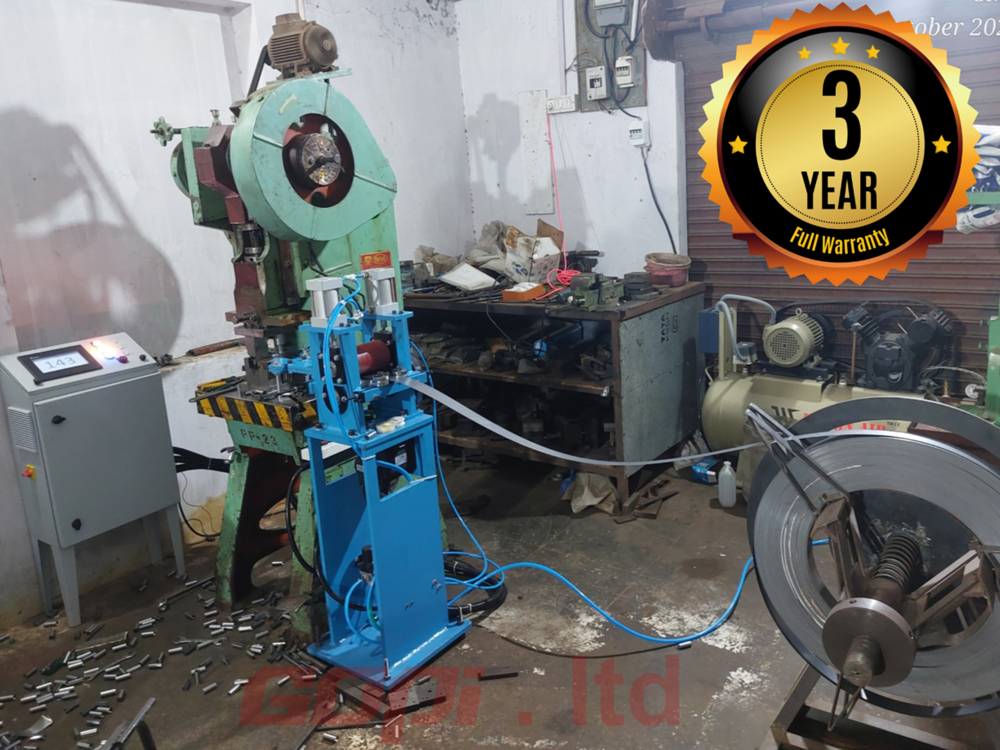

Servo Feeder with PU Coated Roller & Pneumatic Cylinder (3-Year Warranty)

Product Overview:
Our high-performance Servo Feeder with PU Coated Rollers is engineered for precise and reliable strip feeding in metal stamping, punching, and press automation lines. Integrated with a robust pneumatic cylinder mechanism, this feeder ensures smooth material clamping and release, enhancing overall production efficiency. Ideal for feeding materials like steel, copper, aluminum, and brass coils.

Key Features:

Advanced Servo Drive System
Equipped with a high-torque, precision servo motor and drive for accurate feed length control and synchronized press feeding.
PU Coated Rollers
High-durability Polyurethane (PU) coated rollers ensure scratch-free and slip-resistant feedingideal for surface-sensitive materials.
Pneumatic Cylinder Mechanism
Pneumatic top roller lift ensures smooth coil loading/unloading, secure clamping, and consistent feeding pressure.
Touch Screen HMI Control
Easy-to-use interface allows operators to quickly set feed length, speed, and job memory for multiple product setups.
Heavy-Duty Build
Rigid steel frame minimizes vibration and ensures long-term stability even in high-speed press lines.
Three-Year Warranty
Backed by a 3-year comprehensive warranty for servo motor, controller, and mechanical parts (excluding consumables), ensuring complete peace of mind.

Technical Specifications:

Parameter	Details
Feeding Width	Up to 500 mm (customizable)
Material Thickness	0.2 mm 3.2 mm
Feed Length	0.1 mm 9999.9 mm (programmable)
Feed Accuracy	0.1 mm (material-dependent)
Feeding Speed	Up to 30 m/min
Drive Motor	AC Servo Motor
Roller Coating	PU Coated Hardened Rollers
Cylinder Type	Pneumatic (double-acting)
Control System	PLC with HMI (touchscreen)
Air Supply Required	56 bar
Power Supply	3 Phase, 415V, 50 Hz

Advanced PLC-Based Control System

Equipped with a sophisticated PLC-based control system, the NC Servo Feeder ensures accurate sheet feeding and seamless machine integration. Operators benefit from user-friendly interfaces, reducing manual intervention while enhancing productivity. The system supports various automation standards, making it compatible with modern manufacturing setups.

High Precision and Durable Performance

Constructed with a strong MS belt, servo motor, and roller rotation, this feeder delivers reliable performance for sheet handling tasks. The 2 metric ton lifting capacity and 2 kg rack support allow for continuous operation in demanding industrial environments, minimizing downtime and maximizing throughput.

Versatility and Ease of Use

With pneumatic handling, adjustable lifting height up to 60 inches, and a 30 mm/m lifting speed, the NC Servo Feeder adapts to diverse sheet feeding requirements. Its compact footprint (20 x 20 x 60 inches) fits easily into existing production lines, and the electric-powered operation simplifies maintenance and reduces operational noise.

FAQs of NC Servo Feeder:

Q: How does the PLC-based control system benefit my operations?

A: The PLC-based system offers precise control over sheet feeding and lifting, allowing for programmable adjustments and integration with other automated equipment. This enhances efficiency, reduces errors, and streamlines production processes.

Q: What materials and thicknesses can the NC Servo Feeder handle?

A: The NC Servo Feeder is designed mainly for sheet feeding applications, handling a variety of materials according to its maximum lifting load of 2 metric tons and rack capacity of 2 kg. Its width of 20 inches supports standard sheet sizes typically used in manufacturing.

Q: When is maintenance required for optimal performance?

A: Routine maintenance should be conducted based on operational hours and manufacturer recommendations. Periodic checks of the servo motor, MS belt, and pneumatic components help ensure longevity and uninterrupted functionality.

Q: Where can the NC Servo Feeder with Forklift be installed?

A: This feeder is suitable for installation in manufacturing plants, fabricating units, metalworking industries, and facilities requiring automated sheet feeding solutions. Its compact size ensures easy integration into existing lines.

Q: What is the process for setting up the feeder?

A: Installation involves connecting the unit to an electric source (420V), configuring the PLC interface, and testing pneumatic and servo functions. Professional setup is recommended for safe and efficient integration.

Q: How is the NC Servo Feeder used in daily operations?

A: Operators load the sheets into the designated rack, set the required feeding parameters using the PLC interface, and monitor the operation as the servo feeder automates the lifting and feeding into subsequent machinery.

Q: What are the main benefits of this equipment for manufacturers and exporters?

A: The NC Servo Feeder increases productivity, improves accuracy in sheet handling, and reduces manual labor, resulting in consistent quality and faster output for manufacturers, exporters, and other industrial users.
